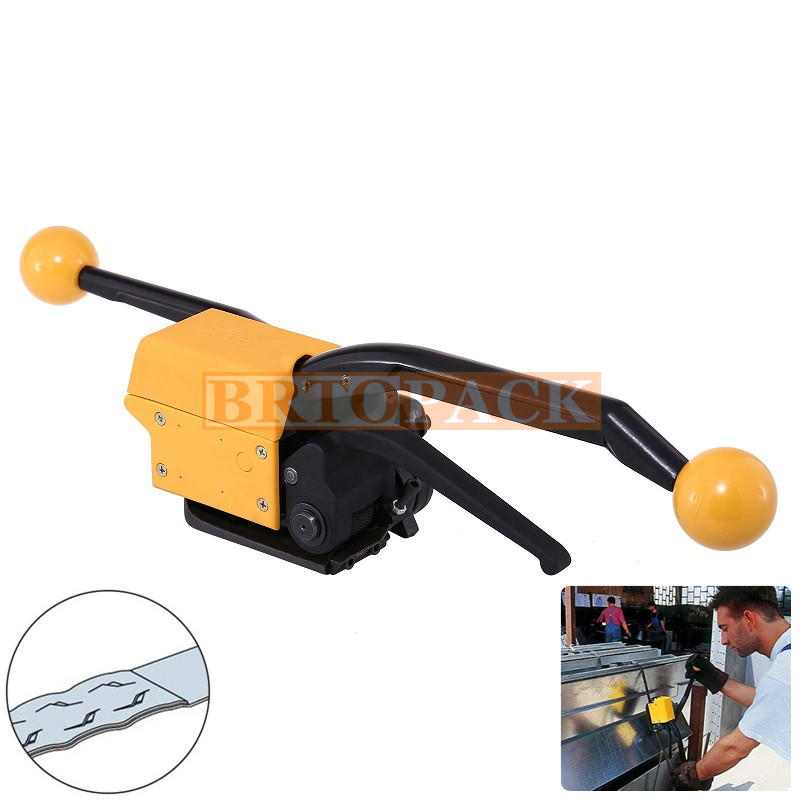

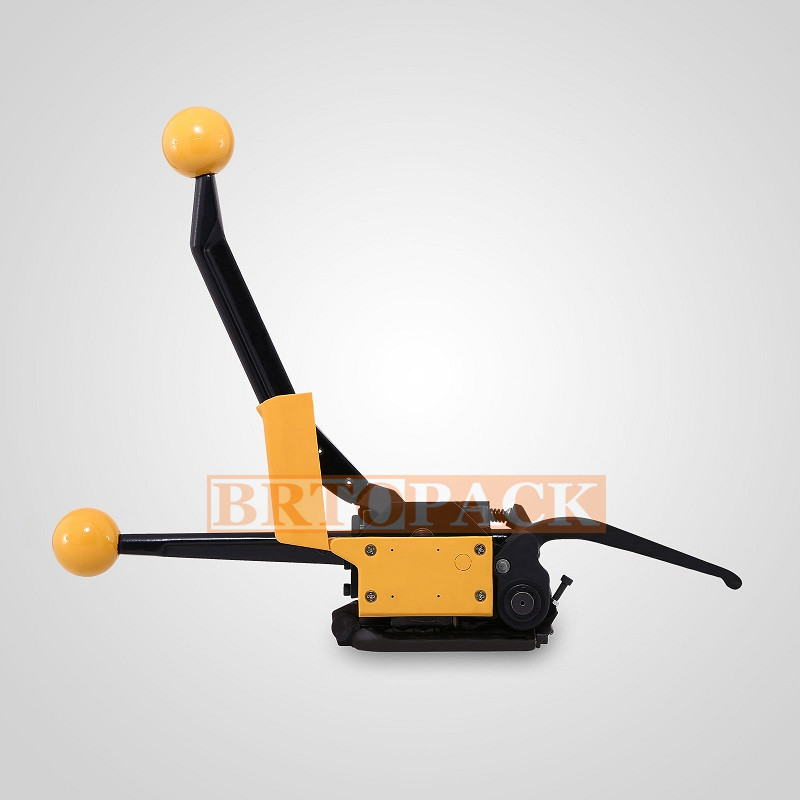

A333 Manual Sealless Steel Strapping Machine

Features & Details

EASY TIGHTENING & PACKAGING

The steel strapping machine A333 features non buckle design, no need to use other steel buckles. Tensile strengths ranging: 700-850 N. The special structural design of the machine can easily finish the tightening and packaging.

CONVENIENT OPERATION

No fasteners, double power structure, can easily complete the fastening between the steel packing belts, and comes with high connection reliability. Strapping Width: 13 / 16 / 19 mm (1/2" / 5/8" / 3/4"). Strapping Thickness: 0.38-0.58 mm (0.015"-0.023")

HIGH STRENGTH STRUCTURE

The A333 strapping tool is very durable, and all the engine body and component use high strength alloy material. It has the advantages of high-reliability design and advanced technology manufacturing.

COMPACT SIZE

This steel strapping tool has a compact and lightweight structure, easy for transportation, also makes the machine easy to use with no fatigue.

WIDE APPLICATION

The steel strapping machine A333 manual strapping tool is used to wrap and strap flat packages like pallets, bales, crates, cases, steel, aluminum bars, and other heavy packages.

Specifications

Strapping Width: 13/16/19mm

Strapping Thickness: 0.38-0.58mm (0.015"-0.023")

Average Seal Strength: Approx.80%

Tensile Strengths Ranging: 700-850N/mm²

Tool Length: 387 mm/15.2"

Tool Width: 162 mm/6.4"

Tool Height: 308 mm/12.1"

Tool Weight: 3.9 kg/8.6 lbs

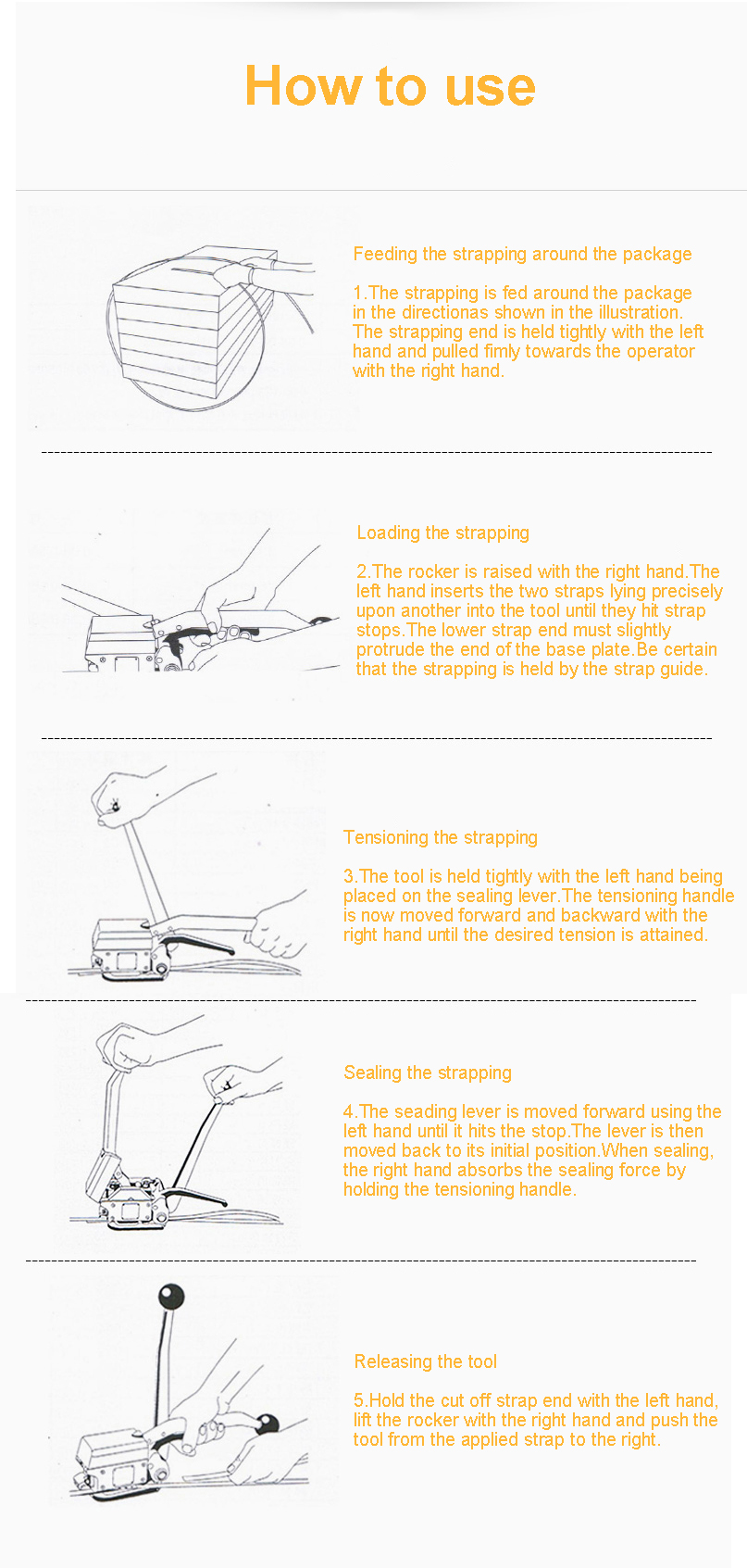

How to use steel strapping machine ?

Feeding the strapping around the package The strapping is fed around the package in the direction

as shown in the illustration. The strapping end is held tightly with the left hand and pulled firmly towards the operator with the right hand.

Loading the strapping

The rocker is raised with the right hand. The left hand inserts the two straps lying precisely upon another

into the tool until they hit the strap stops.

The lower strap end must slightly protrude the end of the base plate. Be certain that the strapping is held by the strap guide

Tensioning the strapping

The tool is held tightly with the left hand being placed on the sealing lever. The tensioning handle is now

moved forward and backward with the right hand until the desired tension is attained.

Sealing the strapping

The sealing lever is moved forward using the left hand until it hits the stop. The lever is then moved back to

its initial position. When sealing, the right hand absorbs the sealing force by holding the tensioning handle.

Releasing the tool

Hold the cut off strap end with the left hand, lift the rocker with the right hand and push the tool from the applied strap to the right.
