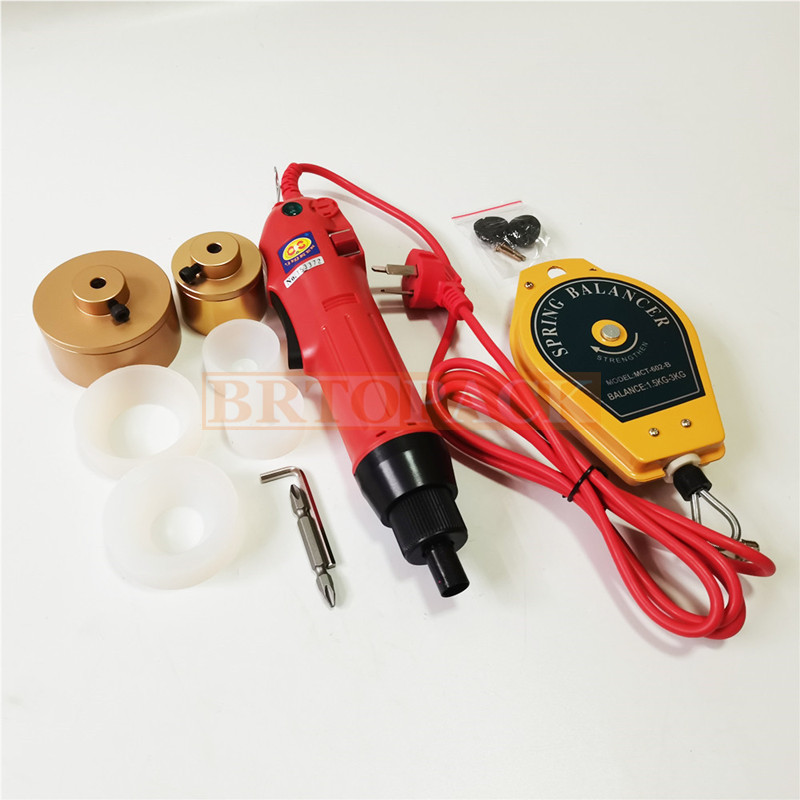

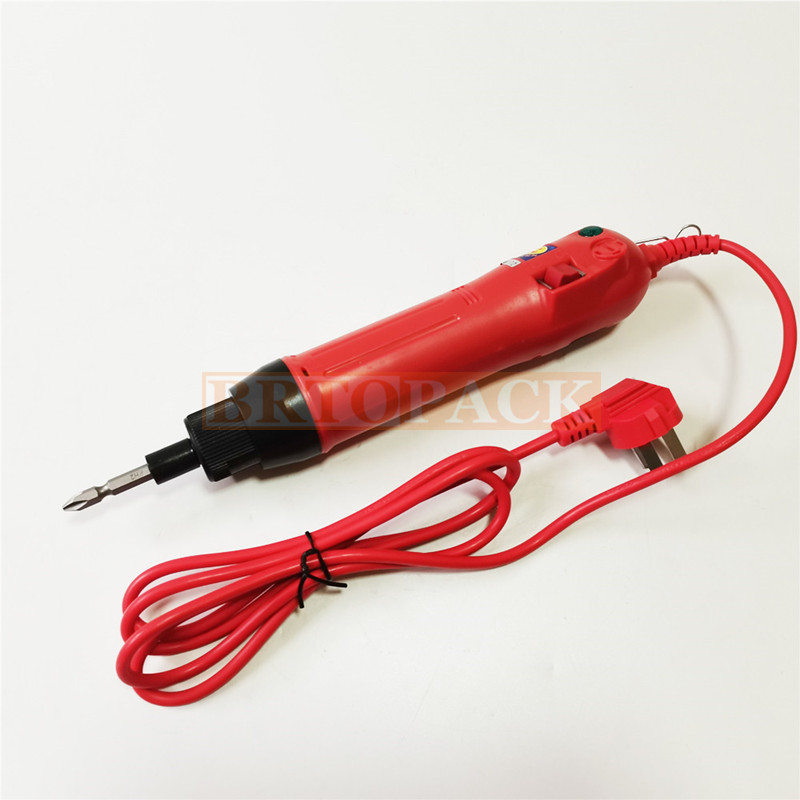

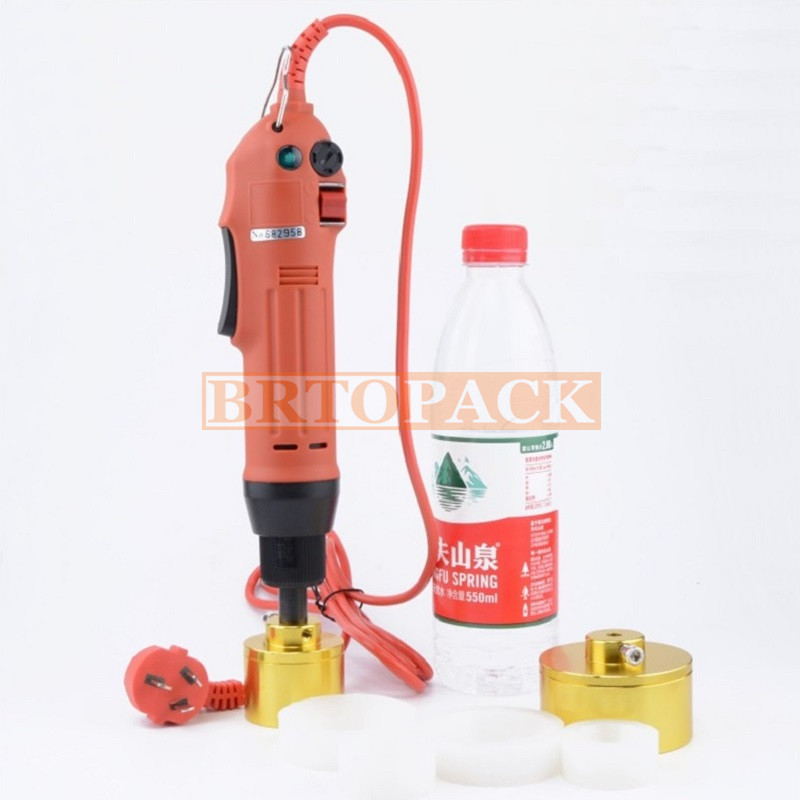

Hand-held Electric Bottle Capping machine

Equipment Introduction

Hand-held electric capping machine is mainly used to the screwcap tighten and loosen. Easy to carry, which can be easily used to tighten or loosen the cap. With has the screw cover a wide range, screw cap is not limited to the scope of the bottle to the scope of the bottle is tall or short, shape, size, weight restrictions, can unscrew the cover and tighten the cover, convenient operation, low failure rate characteristics such as low price, is one of the best tools for threaded cap on tight. Especially suitable for the bottle is higher, larger, heavier or oddly shaped bottle, or the lids of the specifications of the many, often need to charge screw lids used. Suitable for all kinds of high strength of bottles, bottle caps, optional floor stand.

Hand-held electric capping machine is suitable for producing containers and bottles in all shapes.  It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Technical Parameters

Power: AC220V50-60Hz
Power: 80w
Work: Electric Capping
The Operation Forms: Handheld
Capping Diameter: 10-50mm (optional)
Production Capacity: 30-90 bottles / minute (depending on proficiency)
Bottle Height: not limited
Torque: 50-25kgf.cm
Machine Size: 70*150*300mm
Total Net Weight: 1kg

How to use

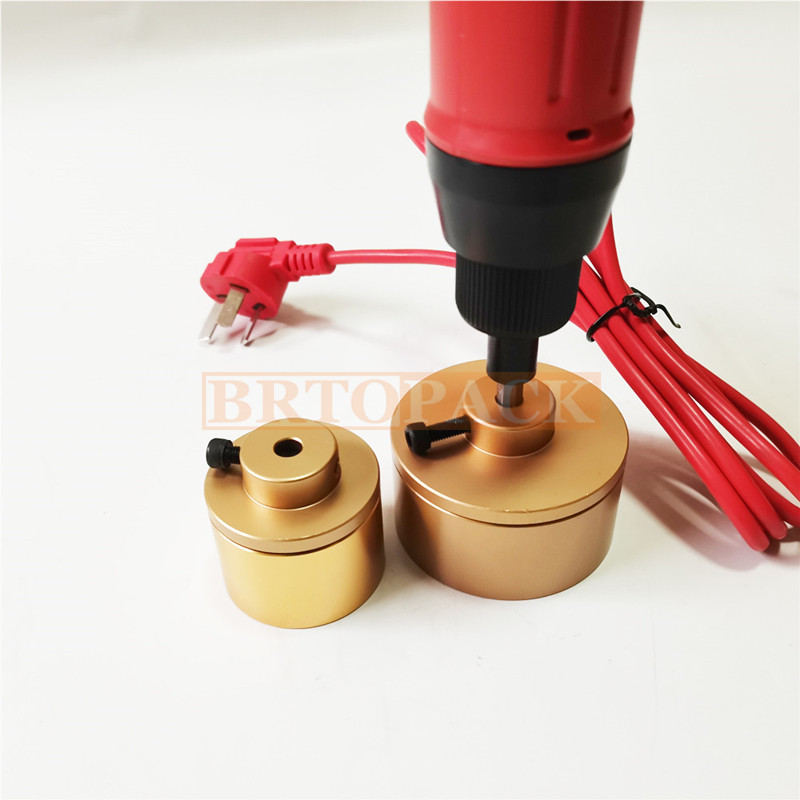

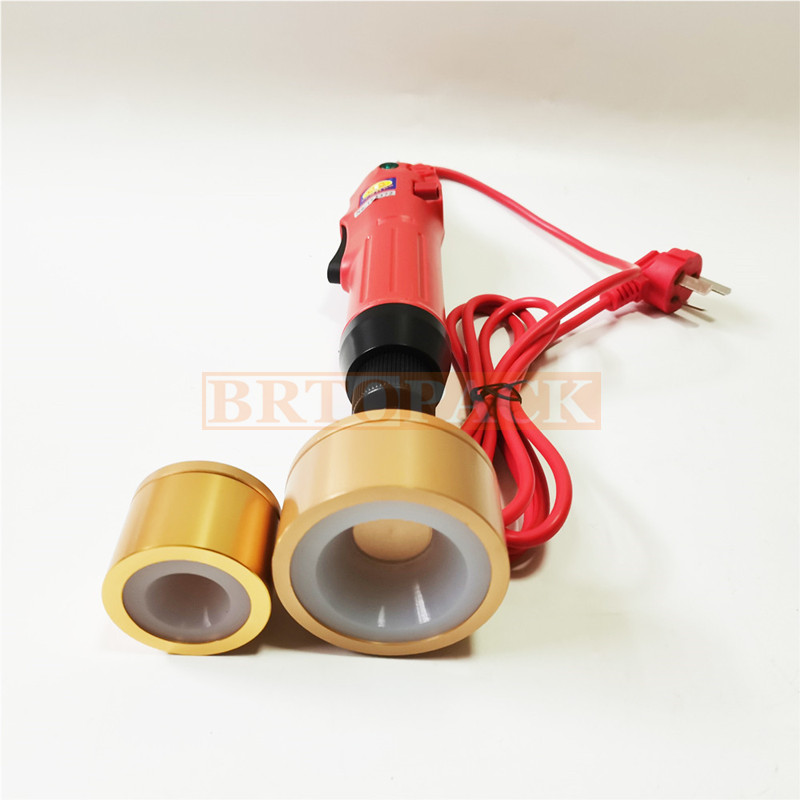

Put chuck onto the cap to be tightened. Push down switch to active the capper. The capper starts and tightens the cap. The capper automatically shuts off while reaching the pre set torque. Relieve operator from blisters, fatigue and potential carpal tunnel damage caused by hands and wrists overworking.

Its adjustable clutch can effectively avoid the cap damage and reduce the wear and tear of the internal plug once the cap is tightened chuck to stop spinning, show that you can be the next cap operation. Capping work applicable to a variety of high strength bottle caps apply to the the cap direct range of 10-50mm, single production capacity of up to 30-90 bottles/min.
