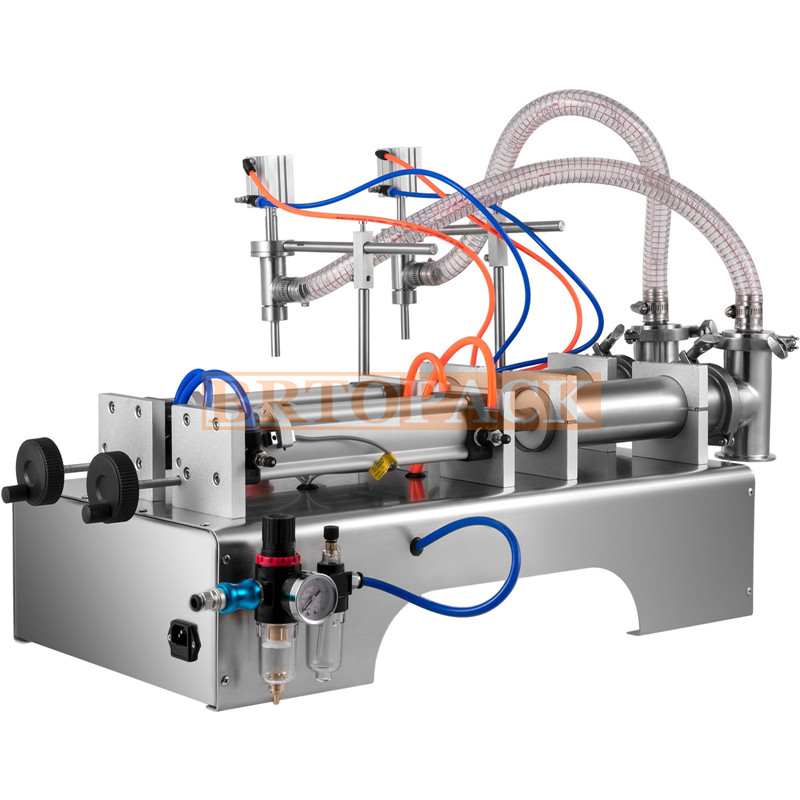

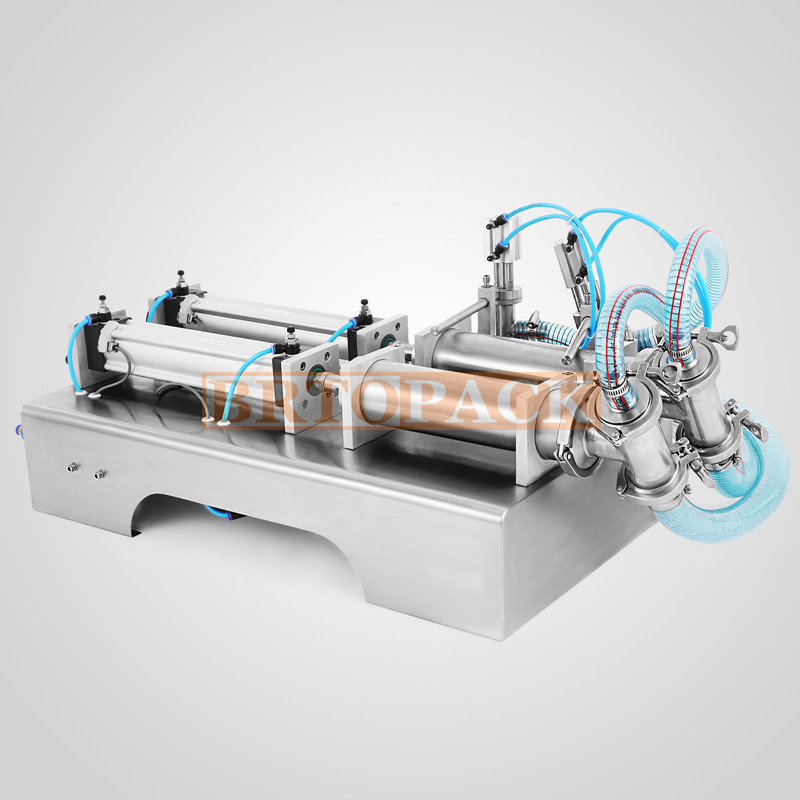

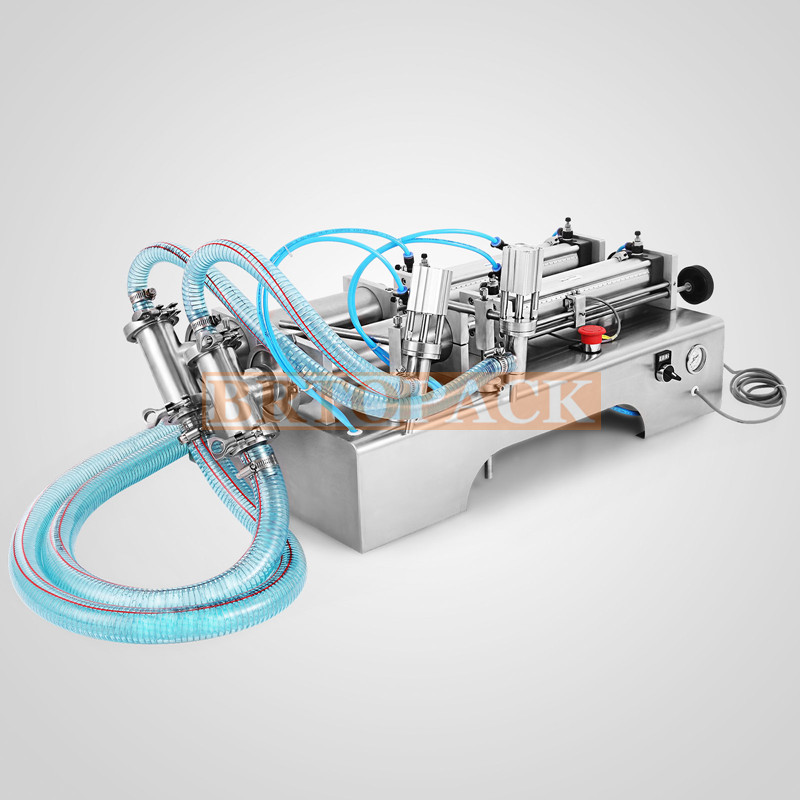

Double Heads Horizontal Liquid Filling Machine Pneumatic Automatic Bottle Filler

Description

YT/GT series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

Feature

Auto & Manual Control

Two control modes help you operate the machine efficiently. Pedal once and discharge once in manual mode while filling continuously in auto mode. With the advanced air pressure gauge, you can observe the pressure changes at any time and stop the machine if something goes wrong.

Stainless Steel Structure

Pneumatic filling machine is made of 304 stainless steel food-grade materials, which can endure corrosion, rust, acid, and alkali. The anti-drip nozzle is designed to avoid leakage and save more liquid during operation.

Accurate Pneumatic Filling:

Our liquid filling machine is equipped with an excellent air cylinder, ensuring the precision of filling, Filling accuracy:≤±1%. In order to meet your various filling needs, adjustable speed and volume are necessary for this machine. Filling volume: 3.4-33.8 oz/100-1000 ml; Filling speed: 0-80 bottles/min.

Adjustable Height

Reasonable design, compact shape, simple operation, partly adopt the German FESTO/Taiwan AirTac pneumatic components.Adopt the anti-drip, Anti-drawing and lifting filling device. The height of filling nozzle can be adjusted as needed, making it suitable for bottles of different heights. Easy and convenient.

Pistion Filling

Adopting the way of pistion measuring, it can fill liquid accurately. The filling range and filling speed can be adjusted according to production need.The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

Automatic mode&Pedal mode

Filling volume, filling speed can be adjustable, filling accuracy is high.

It's with two modes, which you can choose as needed. The pedal switch can be used to test the machine, ensuring accurate filling.

Wide Application

This filling machine is suitable for filling various liquid, such as shampoo, edible oil, laundry detergent, juice, etc. It can be widely used in medicine, daily chemical, beverage industries.

Parameters

Model: YT2 Double Heads Pneumatic Piston Liquid Filler

Voltage: 220V/110V 50/60Hz

Power: 50W

Filling Accuracy: ≤±1%

Applicable Air Pressure: 0.4-0.6mpa

Air Capacity: >30L

Air Compressor: 1.5hp

Size Of Air Compressor Connector: OD 8mm

Filling Speed: About 10-40 Bottles/min(Depend on materials and bottle size)

Filling Range: 10-100/10-200/30-300/50-500/100-1000/50-2500/1000-5000ml

Nozzle Size: 4mm/8mm/12mm (Can be customize)
