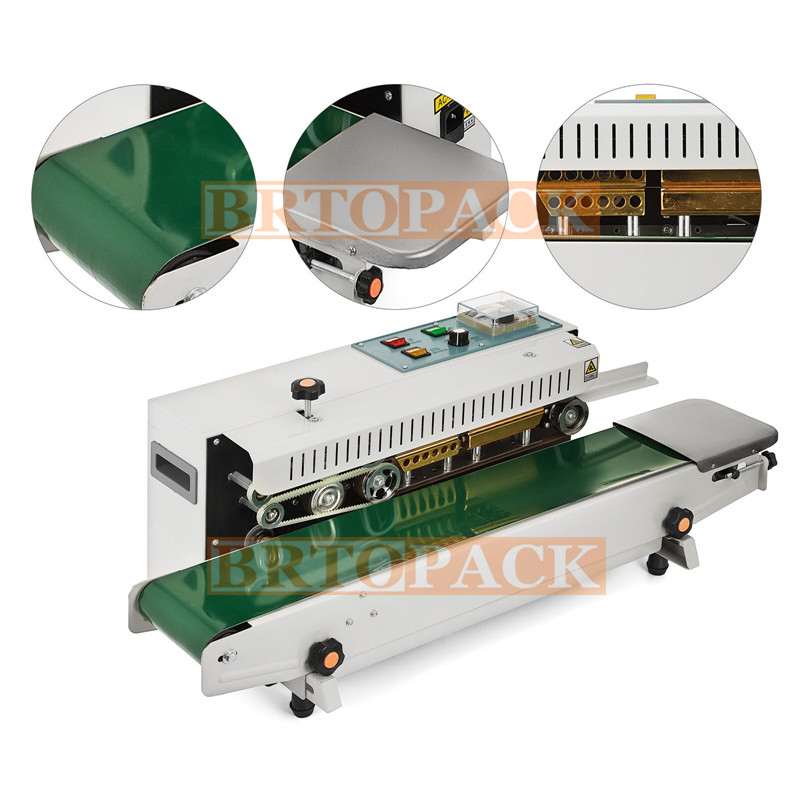

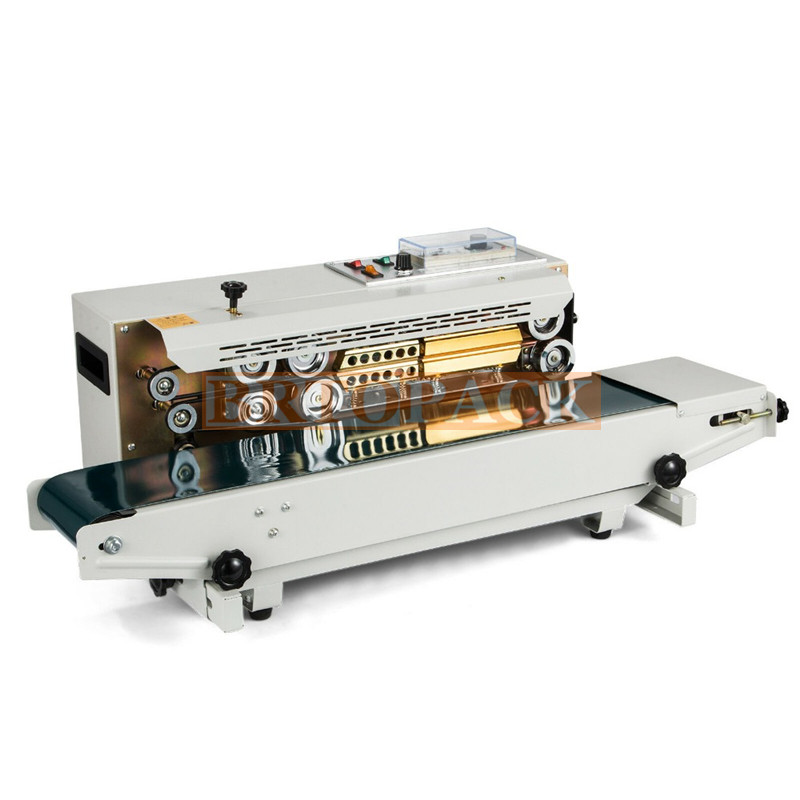

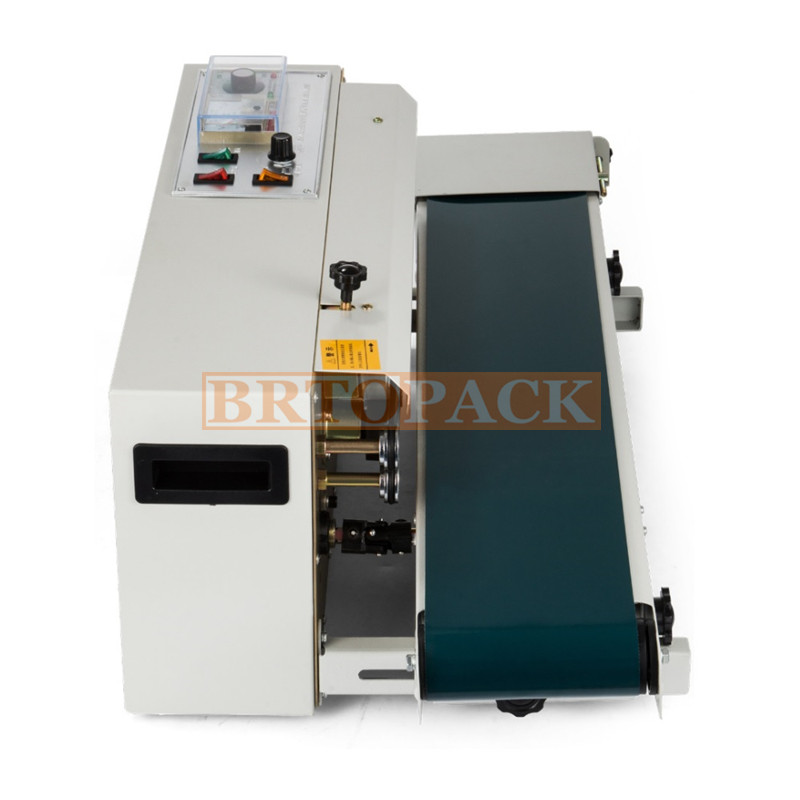

Automatic Continuous Sealing Machine

Features

The machine uses an electronic constant temperature mechanism and a continuously adjustable speed transmission mechanism. It can seal plastic films or bags made of different materials in different shapes. It is an ideal sealing machine for sealing plastic pouches, aluminum foil pouches, composite pouches in the medical, agricultural, chemical, food, etc. industry, you can print the production date, logo, etc. on the packaging of your products at the same time. Used horizontally for dry explosive packaging sealing. Due to the different thickness of the bag, it is advisable to set the temperature and pressure valve correctly.

Details

EXCELLENT PERFORMANCE

Seal Width: 5-15mm (0.24-0.59 inch), Film Thickness: 0.02-0.80mm, Seal Speed: 0-16m / min. The sealing machine has stable and efficient performance and is suitable for various sealing lines.

COMFORTABLE PRINTING

This automatic sealing machine is equipped with embossing wheels that can seal different length sizes and different seal patterns. At the same time, the date, note, time and logo can be printed at the same time as the seal.

DURABLE MATERIAL

The sealing machine has a metal construction with permanent electrostatic paint. The heating block and the cooling block are made of pure copper. This high-quality material is solid and more wear-resistant.

HUMANIZED DESIGN

This automatic sealer focuses on details. Easy to use control panel. Buttons that can adjust height and pressure to meet different needs. And also two handles makes it a portable machine for users to move around when needed.

WIDE APPLICATION

This kind of sealing machine is suitable for pouches with a thickness of 0.02mm-0.8mm on both sides, fit for sealing plastic pouches, aluminum foil pouches, composite pouches in the medical industry, the agricultural chemicals , Groceries, etc.

Product Parameter

Voltage: 220V
Power: 500W
Temperature Control Method: Electronic Constant Temperature Control
Sealing Speed: 0-12m/min
Sealing Thickness: 0.02-0.80mm
Temperature Control Range: 0-300℃
Mode Of Operation: Electronic Stepless Adjustment
Printing Method: Steel Stamp
Pulse Power: 750W
Sealing Width: 5-15cm
Sealing Length: >0
Conveying Load: <5kg
Size: 810*370*320mm
Weight: 20kg
