Capsule Filling Machine

C

Description

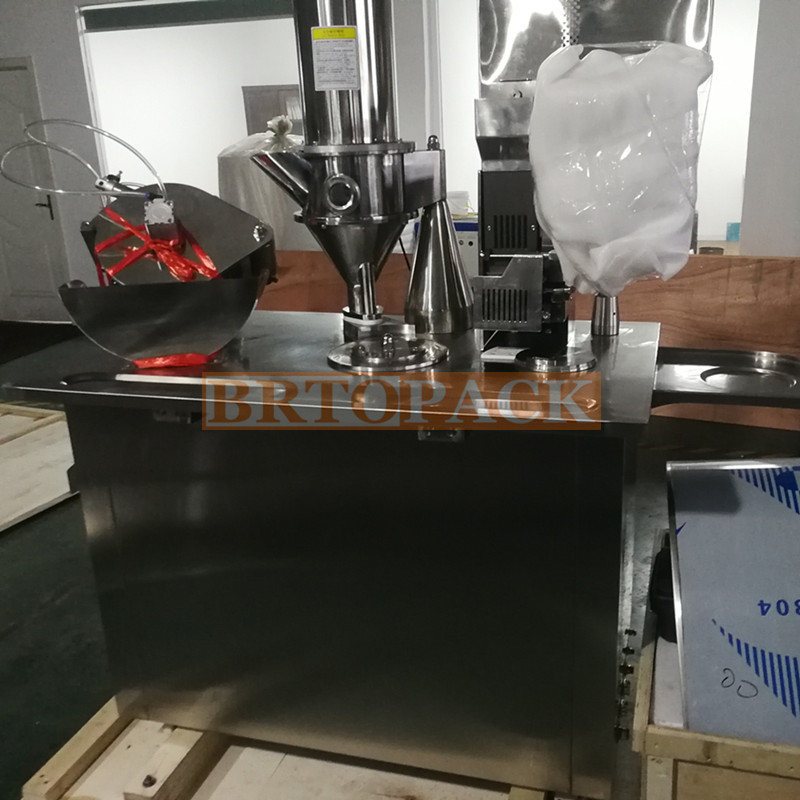

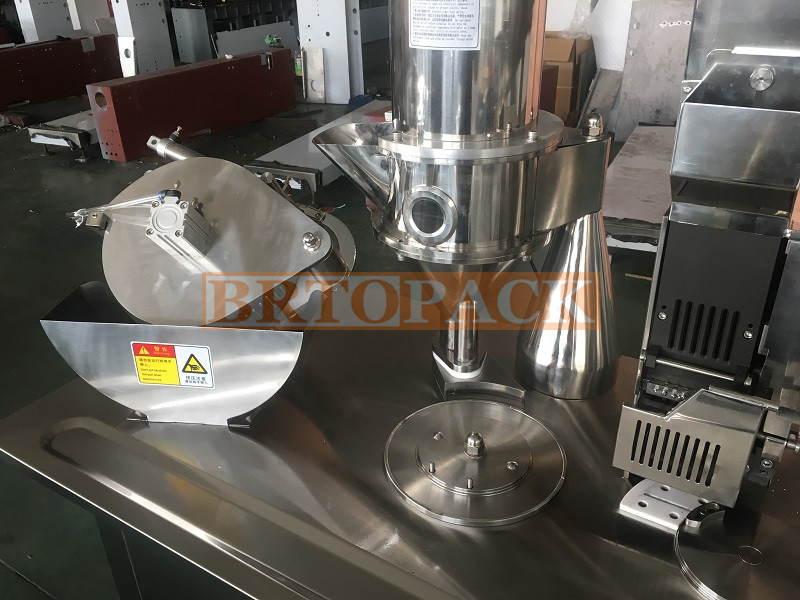

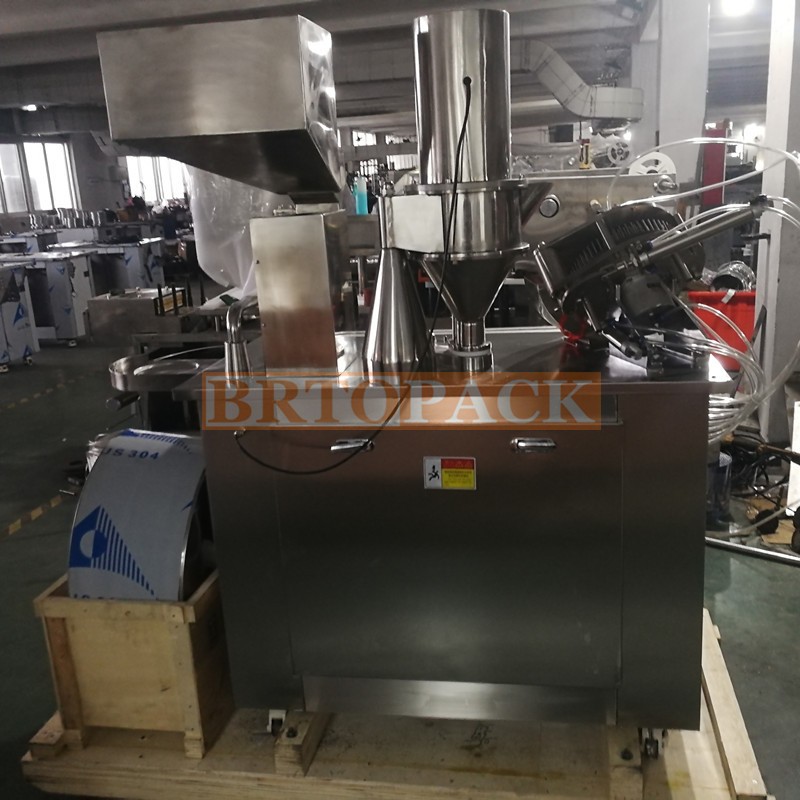

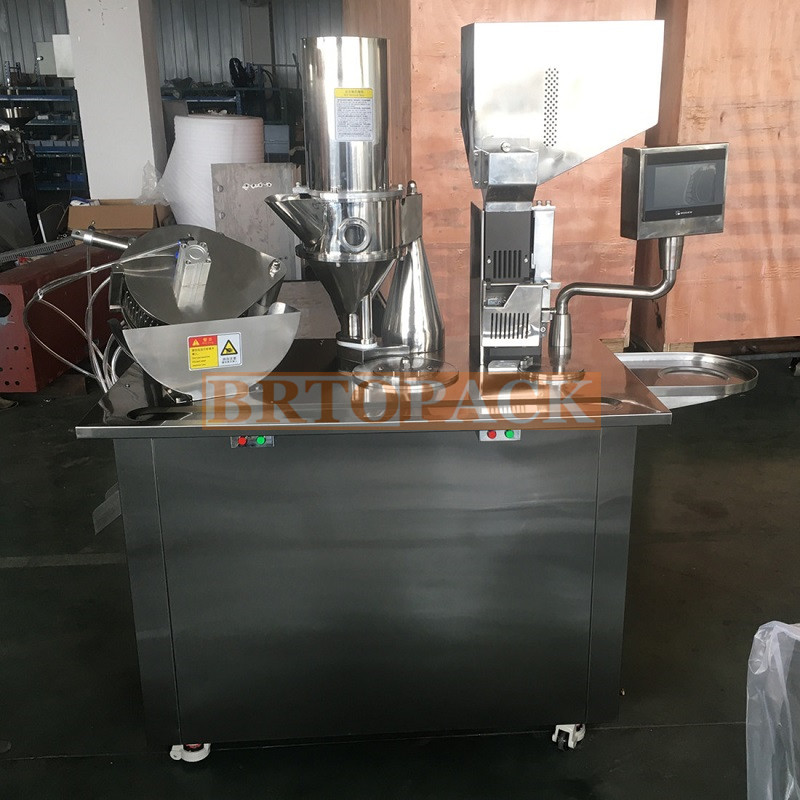

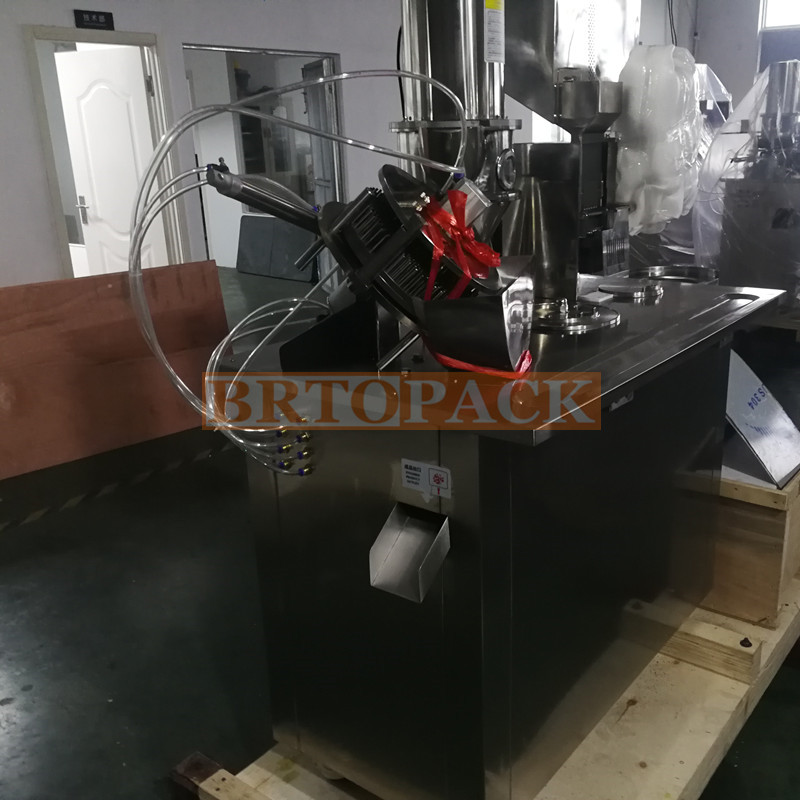

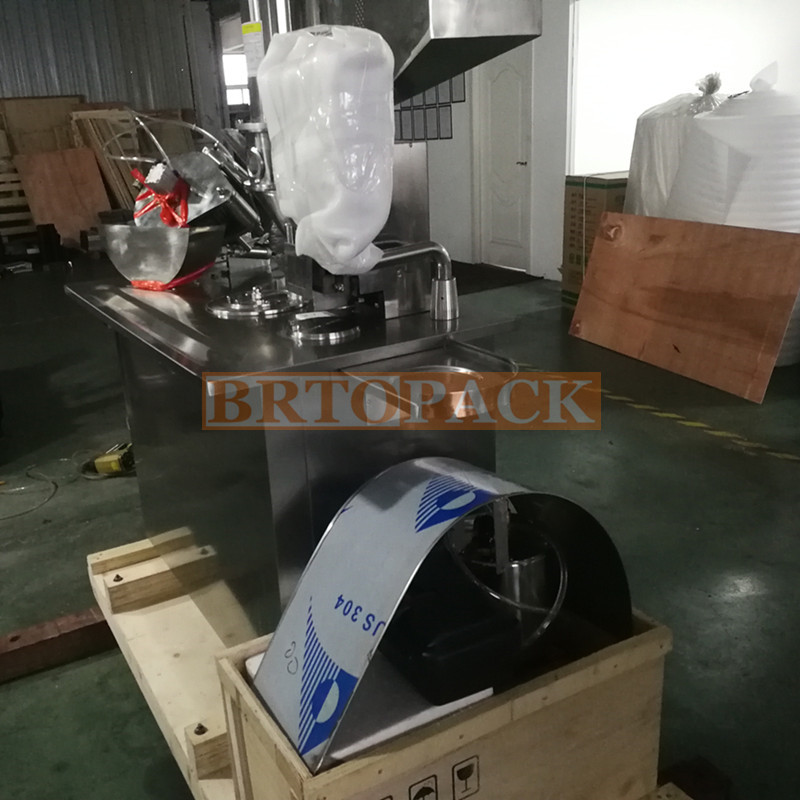

The product is special capsule filling machine, Semi Automatic Capsule Filling Machine, Capsule Filler which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The capsule filler is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. Capsule filling machine semi automatic can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall capsule filler is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

Main Specifications

Control Mode: Semi-automatic

Applicable Industries: Pharmaceutical and supplements

Voltage: 380V 50HZ 3P

Power Supply: 2.21Kw

Air Consumption: 0.6Mpa

Filling Dosage: Powder/Granular material

Filling Accuracy: 99.9%

Suitable for filling capsule size: 000#,00#, 0#, 1#, 2#, 3#, 4#,5#

Capacity (Capsule/min): 30-300

Capacity: Max.Output 20000 Capsules/hour

Dimension: 1290*685*1600mm

Weight: 350kg

Features

1.This Capsule Filling Machine is suitable for filling powder and granular materials in pharmaceutical and health food industries.

2.Suitable for size #000-#5 of empty capsules filling.

3.The machine can finish the actions of position, separation, filling, locking of capsule, etc., and reduce the labor intensity and improve the efficiency of working.

4.The filling amount can be adjusted by the number of rotations of the dosing disk. The powder feeder also has agitator to regulate the powder filling.

5.Powder material feeding is accurate.
6.Machine body and working table made of stainless steel.

7.After all the empty capsules have been rightly rectified and filled up, the mechanism will stop automatically to reduce the operators working worries.

8.Meet the GMP requirements of the pharmaceutical industry.
