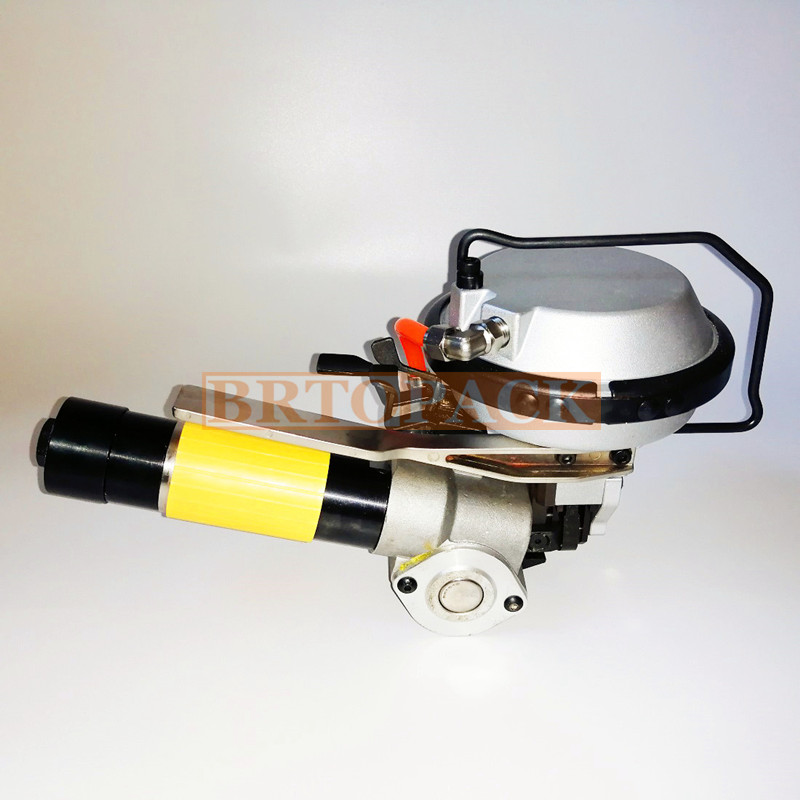

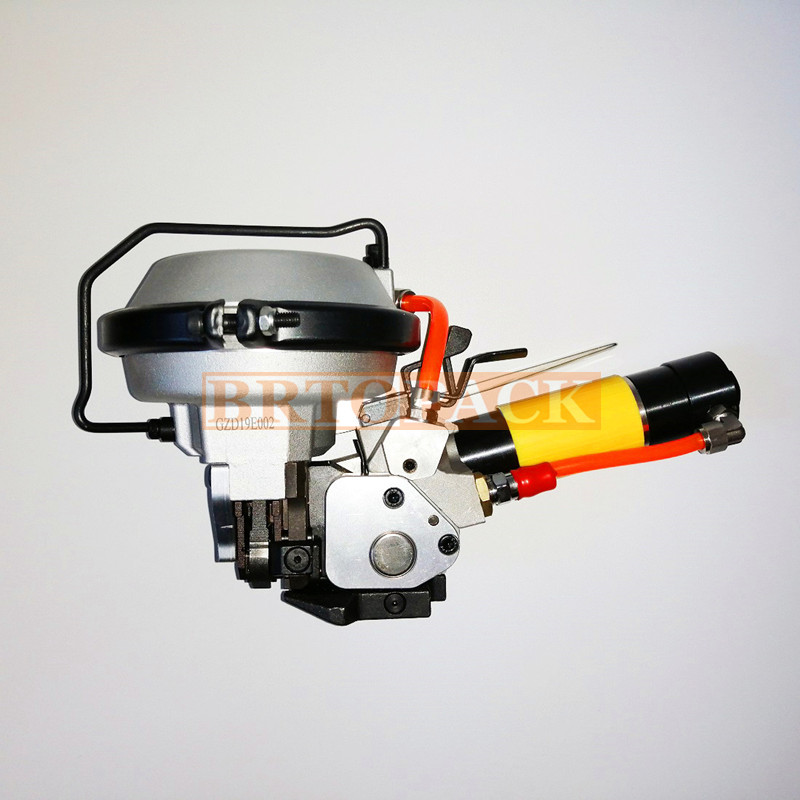

A480/KZ19 Pneumatic Steel Strapping Machine

Feature

KZ19 steel strapping machine Light weight ,easy operation, safety and reliable ,excellent performance and so on.

All actions of tensioning, sealing and breaking can be finished with one hand.

Banding machine is widely used in every kind of bundling of steel and non-ferrous metal materials.

Technical Parameter

Suitable For Packing Belt: Steel strap

Tape Size: Width(16/19)*Thickness(0.63-0.9)mm

Use Air Pressure: 0.4-0.6Mpa

Tensioning Force: 3000N

Tape Width: 16/19mm

Tape Thickness: 0.63-0.9mm

How to use A480/Kz19 steel strapping machine ?

1 Feeding the strap

The strap is fed through the seal, around the package to be strapped and again through the seal The strap end is then bent. The operator then tensions the loose loop manually making sure that the bent strap end is adjacent to the object to be strapped.

2 Introducing the strapping tool

The upper strap is held with the left hand ,The right hand lifts the air motor and introduces the tool from the right to the left and from the rearto the front. The air motor is then released.

3 Tensioning the strap

The tension valve lever is pressed down ( 42 BUTTON), The lever is caught completely and the strap is tensioned until the air motor stalls. If the cycle has to be interrupted the catch has to be pressed to the left.

4 Sealing the strap

The sealing valve lever is pressed down (43 BUTTON) until the seal is notched and the upper strap sheared; the tensioning process is interrupted automatically.

5 Releasing the strapping tool

The strapping tool can be released from the strapping without any further action after completing the strapping cycle. By lifting the air motor the strap end is removed from the tool.

6 Tension regulation

The strapping tension is regulated by the continuous adjustment of the throttle screw The air supply is reduced by turning the screw clockwise. The throttle screw is located at the rear end of the air motor.
