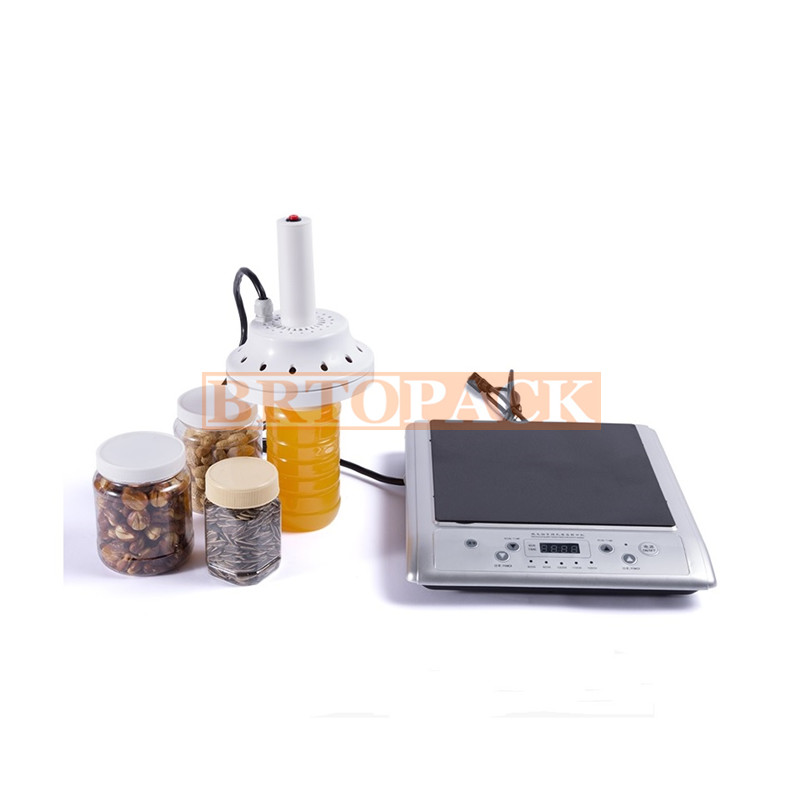

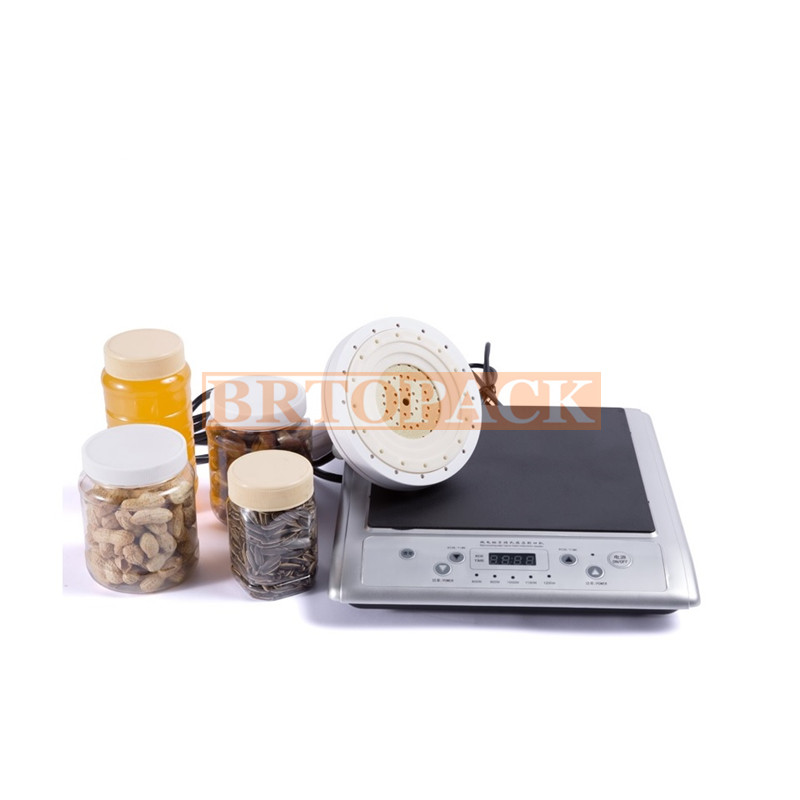

500L Bottle Induction Sealing Machine For 20-130MM

Application Range

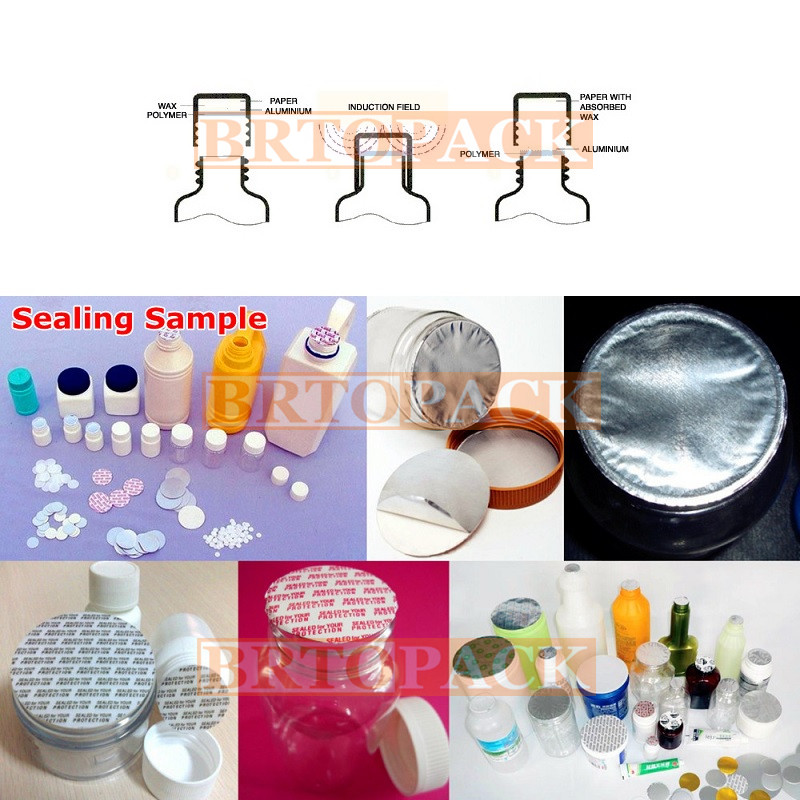

500L is hand-held electromagnetic induction sealing machine 20-130MM, specializing for the aluminum foil sealing of containers in pharmaceutics, chemical industry, pesticide, foodstuffs, cosmetics and light industry. Containers made of various materials are sealable. With small size, light weight, easy operation, it is suitable for low-volume production and operation in labs. The machine operates on the principle of electromagnetic induction: The aluminum foil on the bottle top is highly heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed. The sealing is damp-proof, mould-proof, forgery-proof and theft-proof and prolongs goods storage time. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. but not metal. With latest modular power devices adopted, it is more economized in power and 20~30 times quicker in instantaneous heating than conventional vacuum tube-induced heaters, its heating efficiency being up to more than 90%.

Machine Specification

Model: 500L

Material: Plastic & Electronic Component

Voltage: AC 110/220V 50HZ/60HZ

Static Power: ＜0.1A

Maximum Supply Current: ＜6A

Power: 800-1200W (Adjustable)

Working Frequency: 30KHz ±5%

Cable Length: 100cm/39.37''(appr.)

Sealing Diameter: 20-130mm

Capacity: 5-20 Pcs/min

Max Environment Temperature: 45℃

Tool's Weight: 2.0kg/2.5kg

Suitable Membrane Material: special induction film, aluminum foil composite membrane

Auto Power Off: No operation within 15 minutes, the machine automatically shut down.

Widely used as packaging machine in pharmaceuticals, pesticide, and lubricant and cosmetics industries line.

Performance Characteristics

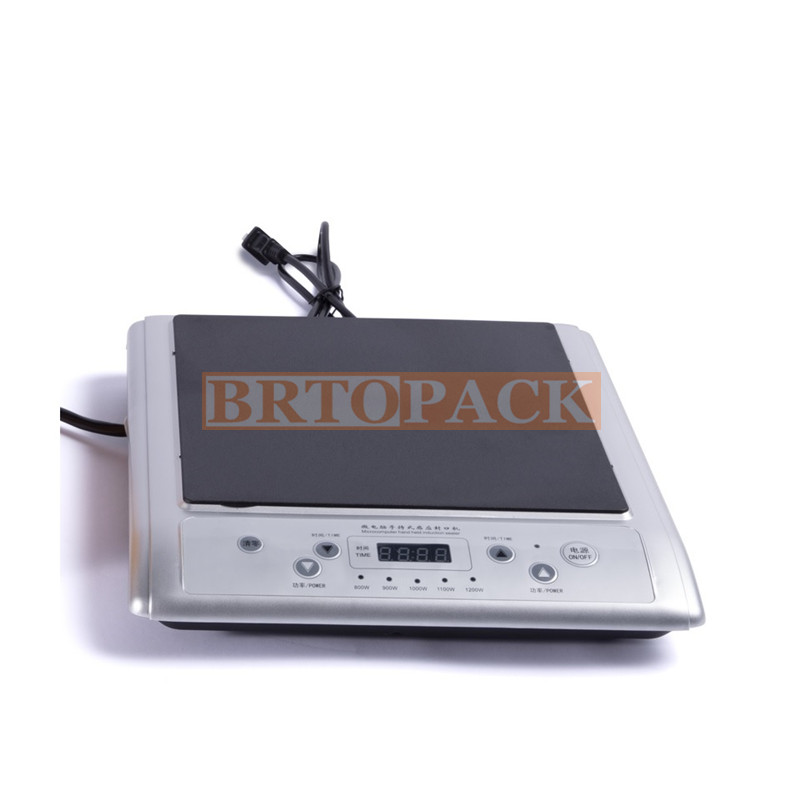

1.Easy Operartion Panel, machine have two power adjusting button freely to adjust increase or Redcue power according to different bottles, easily to operate. Over heat protection more safe.

2.Pure Copper induction loop more efficient operation less energy consumption.

3.Good Qualtiy cooling fan ventilation and cooling heat avoid over-heating, durabe to use.
